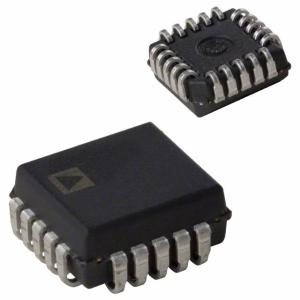

AD7545AKPZ-REEL

Category : Integrated Circuits (ICs) Data Acquisition Digital to Analog Converters (DAC)

Differential Output : No

Package / Case : 20-LCC (J-Lead)

Operating Temperature : 0°C ~ 70°C

DigiKey Programmable : Not Verified

Number of Bits : 12

Number of D/A Converters : 1

Output Type : Current - Unbuffered

Reference Type : External

Voltage - Supply, Analog : 5V ~ 15V

Settling Time : 1µs

Package : Tape & Reel (TR) Cut Tape (CT)

Architecture : R-2R

INL/DNL (LSB) : ±0.5 (Max), ±1 (Max)

Product Status : Active

Mounting Type : Surface Mount

Data Interface : Parallel

Voltage - Supply, Digital : 5V ~ 15V

Supplier Device Package : 20-PLCC (9x9)

Mfr : Analog Devices Inc.

Series : -

Base Product Number : AD7545

Description : IC DAC 12BIT A-OUT 20PLCC
