NCV8730ASNADJT1G onsemi

Here is the English information on the NCV8730ASNADJT1G chip:

The NCV8730ASNADJT1G is a low dropout linear regulator from ON Semiconductor.

Key specifications:

• Input voltage range: 2.7V to 5.5V
• Output voltage: Adjustable between 1.2V to 5.5V
• Maximum output current: 300mA
• Low dropout voltage: Typically 250mV at 300mA
• Adjustable output voltage
• Short-circuit and thermal protection
• Available in small DFN-8 package

The NCV8730ASNADJT1G provides an adjustable output voltage from 1.2V to 5.5V with low dropout characteristics.

Its 250mV typical dropout voltage enables efficient regulation.

Integrated protections ensure safe operation under fault conditions.

Ideal for applications requiring up to 300mA with a customizable output, such as portable equipment.

The compact DFN package maximizes board space efficiency.

In summary, this adjustable low dropout regulator is well-suited for embedded applications where output voltage flexibility and high current capability are needed.

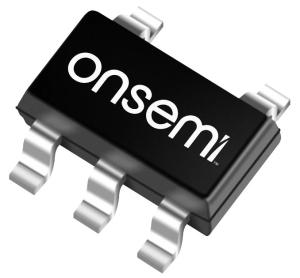

NCV8730ASNADJT1G onsemi Images
